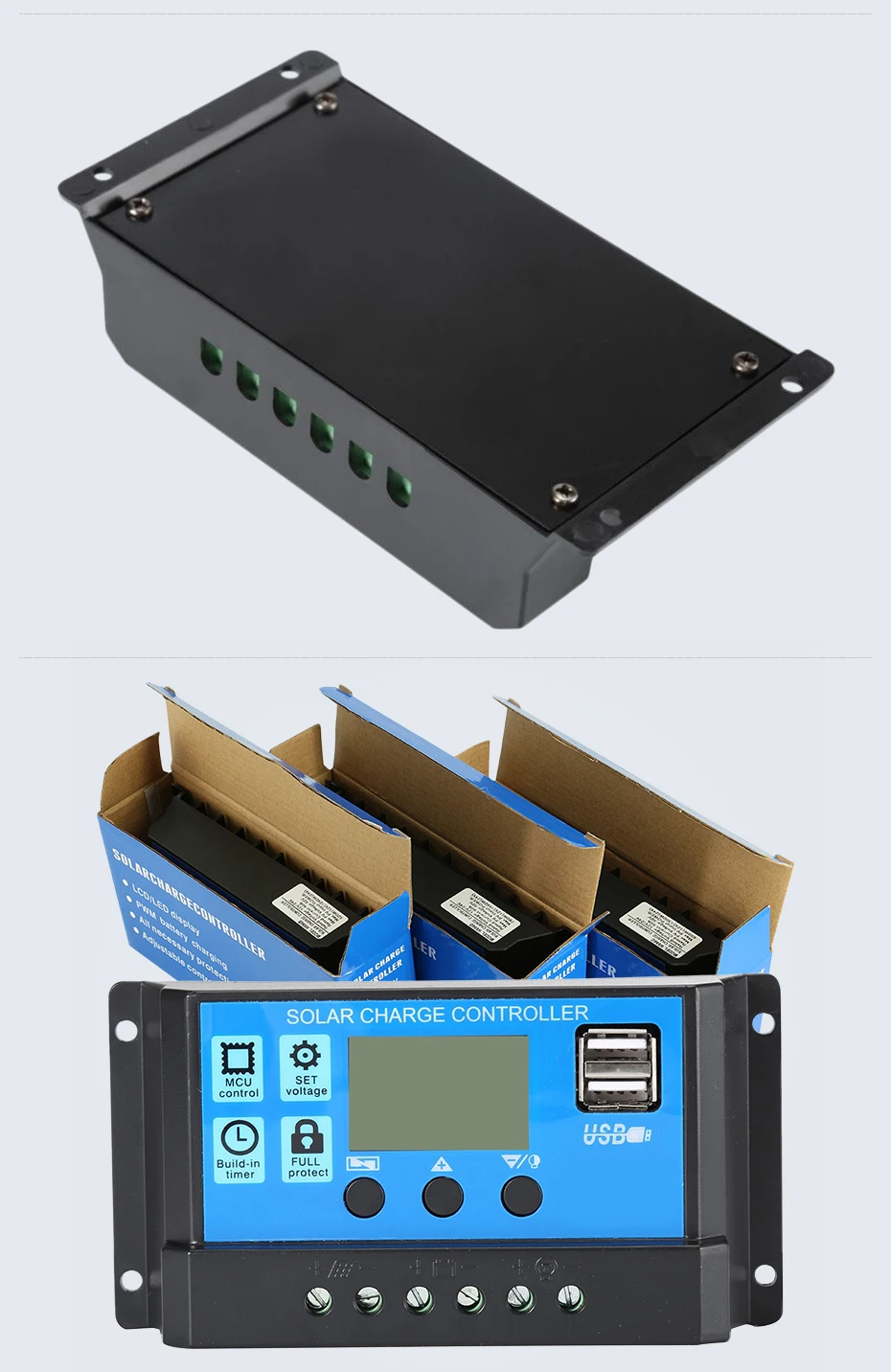

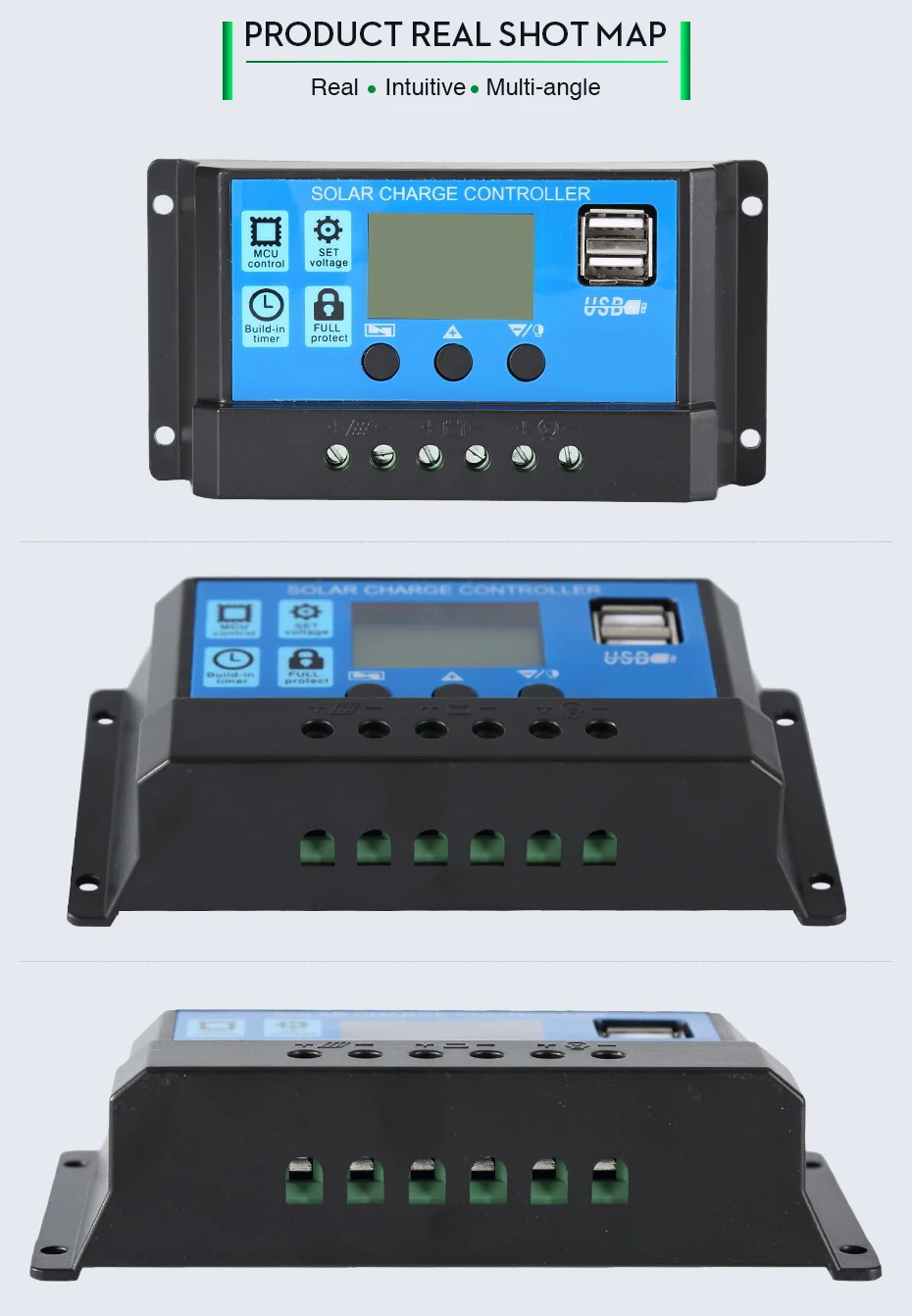

10A 20A 30A 40A 50A 60A 12V 24V PWM Auto Solar Charge Controller 5V Output Solar Cell Panel Regulator PV Home With LCD Dual USB
SYSTEM CONNECTION
1. Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically
There are optional 10A 20A 30A model
10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
If your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A
if your battery is 12V ,the max solar panel input is 25V 360W
if your battery is 24V ,the max solar panel input is 50V 720W
Features:
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
| MODEL | ICharger PWM 10A | ICharger PWM 20A | ICharger PWM 30A | ICharger PWM 40A | ICharger PWM 50A | ICharger PWM 60A |
| Battery Voltage | 12V 24V Auto | |||||
| Charging Current | 10A | 20A | 30A | 40A | 50A | 60A |
| Discharging Current | 10A | 10A | 10A | 20A | 30A | 30A |
| Max Solar input | 50V(for 24V battery) 25V(for 12V battery) | |||||
| Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
| Float charge | 13.7V(defaul,adjustable) | |||||
| Discharge stop | 10.7V(defaul,adjustable) | |||||
| Discharge reconnect | 12.6V(defaul,adjustable) | |||||
| Charge reconnect | 13V | |||||
| Voltage of open light | Solar Panel 8V(Light lights delay) | |||||
| Voltage of close light | Solar Panel 8V(Light off delay) | |||||
| USB output | 5V/3A | |||||
| Self-consume | <10mA | |||||
| Operating temperature | -35°C~+60°C | |||||
| Size | 133.5*70*35mm | 133.5*70*35mm | ||||
*all red color voltage X2 ,while using 24V system.
MENU:switch between different display,or to enter/exit setting by long press.
UP: press to increase value.
DOWN:presss to decrease value.
Setting:
